Bottle making machine

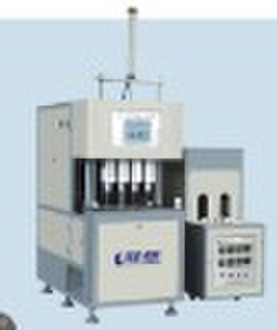

1. BX-B4 Semi-automatic PET bottle making machine is suitable to produce mineral water and soft drink bottles.2. It is also widely used to produce comestic,medical,pesticide bottles,etc.3. Feeding system carries the preforms automatically.Infrared lamps adopted in the pre-heater to heat the PET preforms.4. Semi-automatic process with low investment,high efficiency,quick and safe operation,easy trouble shooting,maintenance and other advantages.Technical parameter:ITEMUNITBX-B4Cavitypcs4Min.product capacityL0.1Max.product capacityL1.5Min.inner neck diametermm15Max.inner neck diametermm38Max.product diametermm100Max.product heightmm310Max.mould thicknessmm110-230Mould opening stroke(Adjustable)mm160Theoretical outputbph1600-2400Operating pressureMpa0.8Blowing pressureMpa1-3Heater powerkw14Machine weightkg750Heater weightkg250Machine dimension(L*W*H)m1.5×0.85×2.45Heater dimension(L*W*H)m2.1×0.6×1.40,
